Oписание продукта

Best HD HDMI sport Live Streaming Hardware H265 Audio Video streaming over 4G reporter tv   live streaming church Wedding IP Broadcast with  Digital camera hot shoe mount foxwey for live stream on facebook, youtube

Portable HD HDMI live streaming encoder over 4G is New streaming hardware encoder in H.265 and H.264 compressing. It is better device for live streaming via digital camera based hot shoe mounting.  and also is portable headend encoders/transcoders made for implementation of live video straming in IPTV, Video-on-Demand, Audio-on-Demand , video conferencing and security system. It is built-in Wifi wireless router and li-thium battery. So it is portable for live broad casting.
The product receives audio and video feeds from multiple sources and performs stream encoding or transcoding to H.264  formats (H.264 level:basline profile/ main profile/high profile) and H.265 HEVC.
This video encoder can be managed via internet web admin interface.
It support one channel of [email protected] input and dual stream output (main/second stream), which is best solution for pushing two streams with different resolutions, such as HD or SD video in two independent stream. This H.264 encoder supports most of video media live streaming server, such as WOWZA, flash media server. And popular IPTV solution on home set top box live streaming system, hotel IPTV system.

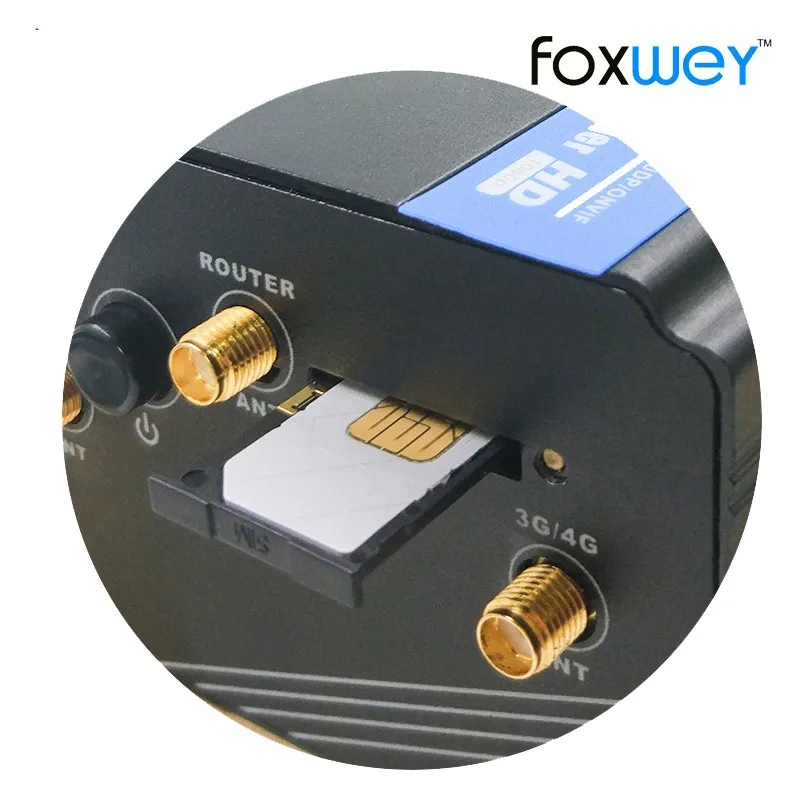

02-front detail


Key Features

- Real-time Encoding of many Video Streams
- Support  H.264 &H.265 Video Encoding
- Dual Stream Transcoding
- HD SDI video source input
- Support for Multiple Streaming Servers
- Web-Based Remote Management
- Support protocols HTTP/RTSP/RTMP/ONVIF/Multicust
- Integrated IPTV Delivery Solution
- HD 1080P at 60fps video input and output
- Super portable with battery and wireless via Wifi or 4G network connection
- Stable and less lantency less 200ms.
- Can work with NVR for video palyback or video recording on CCTV solution.

02-camera



The Pro  live streaming encoder is support HD 1080P 60fps output, after updating the firmware and hardware.Andolder and cheaper encoderonly support 30fps.



Frame rate 60fps will be great advantages for action movies and sports TV live broadcasting.

24fps-vs-30fps-vs-60fps-water

This live encoder support RTMP with user name and passwords, so you can use it on any live streaming platform, such as Youtube, Ustream, livestream, Twitch etc or live streaming server like wowza streaming engine/media server, Adobe flash media server.

Best solution for IPTV and web TV streaming online.







main 2


4. Main stream settings 264-RTMP setting

Pro version VS Lower Cheaper version.

Features

Pro  version

 Low Cheaper version

Output Max. resolution

 60fps (smooth for sports TV)

30fps

Text OSD watermark

Yes

Yes

Image OSD watermark

Yes (Max.3 images)

No

SDI 567I input

Yes, good for SDI 576i recorder

No

Auto-recover

auto-recover when OS crashed

No

Safety

Yes

No, easy to hacked

Admin web interface

New as H.265



Screen shoot of Older and cheaper encoder\' web admin control panel, We supply the Pro version on this item listing.












 Application   for HD live streaming

  • 1. IPTV
  • 2. Digital Signage
  • 3. Video Conference
  • 4. Replace HD Video Capture Card
  • 5. Hotel TV system
  • 6. Live Broadcast
  • 7. Teaching/Campus Broadcast
  • 8. Recording System
  • 9. NVR(Net Video Recorder)

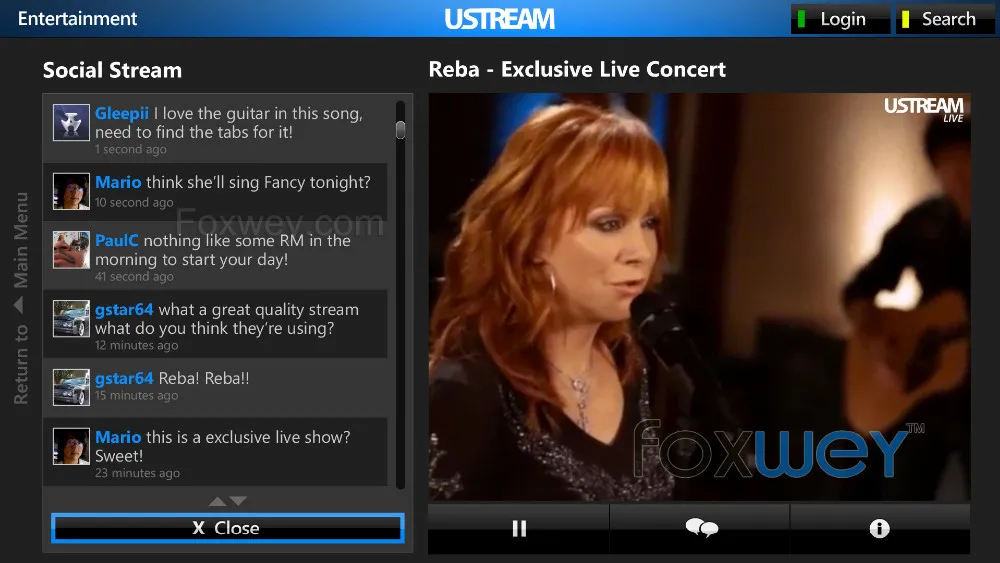

Online live concert events live streaming broadcasting on USTREAM.

03_VieraCast_Ustream_2010.12



Live streaming applications for wedding live broadcasting and friends can watch it by mobile phone or computer client.

37667_880837_45869_image

Live broadcasting for sport TV, sports games, sports events.

148034040.0_standard_709.0

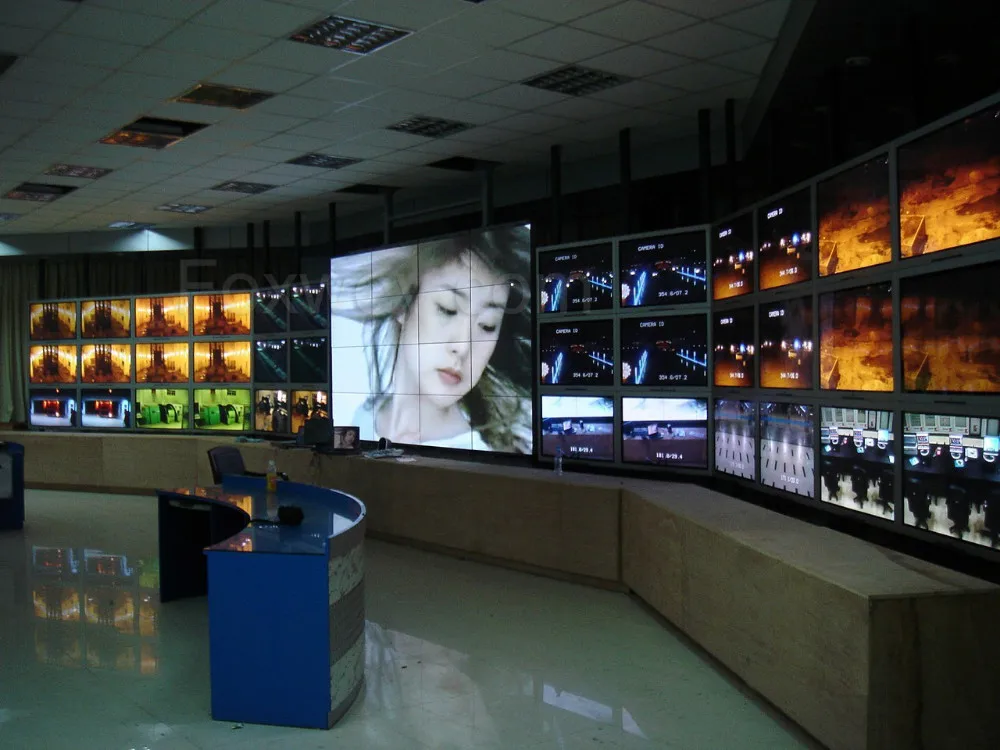

Live video streaming for video walls

20120531110631601

Live stream broadcast for Church

Church-Streaming

Specification


Specification

Video

Input

1x HDMI( 1.3a) HDCP

Supports HDMI Resolution

1920x1080P/1080i/720P @50/60Hz and below

Encoding

H.264/AVC High Profile Level 4.0

Data Rate

0.8Mbps~12Mbps

Rate Control

CBR/VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio

Encoding

AAC

Sampling rate

Auto

Bit-rate

32K/48K/64K/96K/128K/160K/192K

Sampling precision

24 bit

Data Rate

64Kb/s~384Kb/s

System

Ethernet

100 Base-T Ethernet interface

Protocol

HTTP UDP unicast / multicast/ RTSP;RTMP

Control Interface

WEB

Others

Dimension (W× L× H)

11*9*6 CM

Weight

1.5kg

Temperature

0-45(work),-20-80(storage)

Power

5V/DC

Consumption

10W

  • Compressing/ encoding format: H.264/MPEG-4 AVC or H.265 HEVC
  • Support Video streaming over 4G: Yes
  • 4G LTE networks:  LTE -FDD & LTE-TDD  (TD-LTE)
  • Support Video streaming over Wifi:Yes
  • Support video streaming via network cable: Yes
  • Output resolution:Max.1920 *1080P at 60fps
  • Built-in router: Yes
  • With Wifi Hotspot:yes
  • With 4G working status indicator:Yes
  • Connection speed for pushing streaming:Less 20 seconds, auto connection after reboot
  • With Lithium Battery:Yes
  • Working time for Li-battery:Over 4 hours
  • Dimensions:11*9*6 CM
  • Power: 5V at 2A
  • Latency: Less than 200ms
  • With Hot shoe mounting: yes

Would you please buy one smaple to test the quality and leave a message if you have any questions.

We can update the firmware and technical support for 6 monthes and warrant is 2 years.
